Industrial Vacuum Cleaners Airò Professional

Aertecnica ARIETE 561 ATEX

Suitable for Dust and Oily Solids

The Aertecnica ARIETE 561 ATEX industrial vacuum cleaner, featuring a 5.2 kW side channel blower and compressed air automatic cleaning, stands out as one of the most widely chosen three-phase models in the range. Its automatic filter cleaning system ensures reliable operation and consistently high filtering efficiency. Designed for continuous, long-duration use, it is ideal for connection to production machinery and fully compliant for use in environments governed by ATEX regulations.

Included Features

Frame body made in Stainless steel

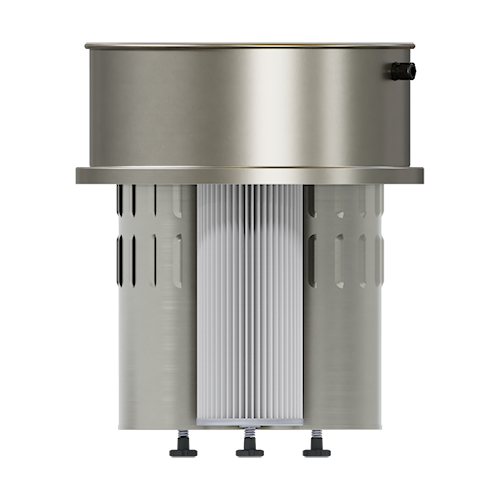

HEPA Filter Cartidge + PTFE

Union With Tangential Inlet

Optional Features

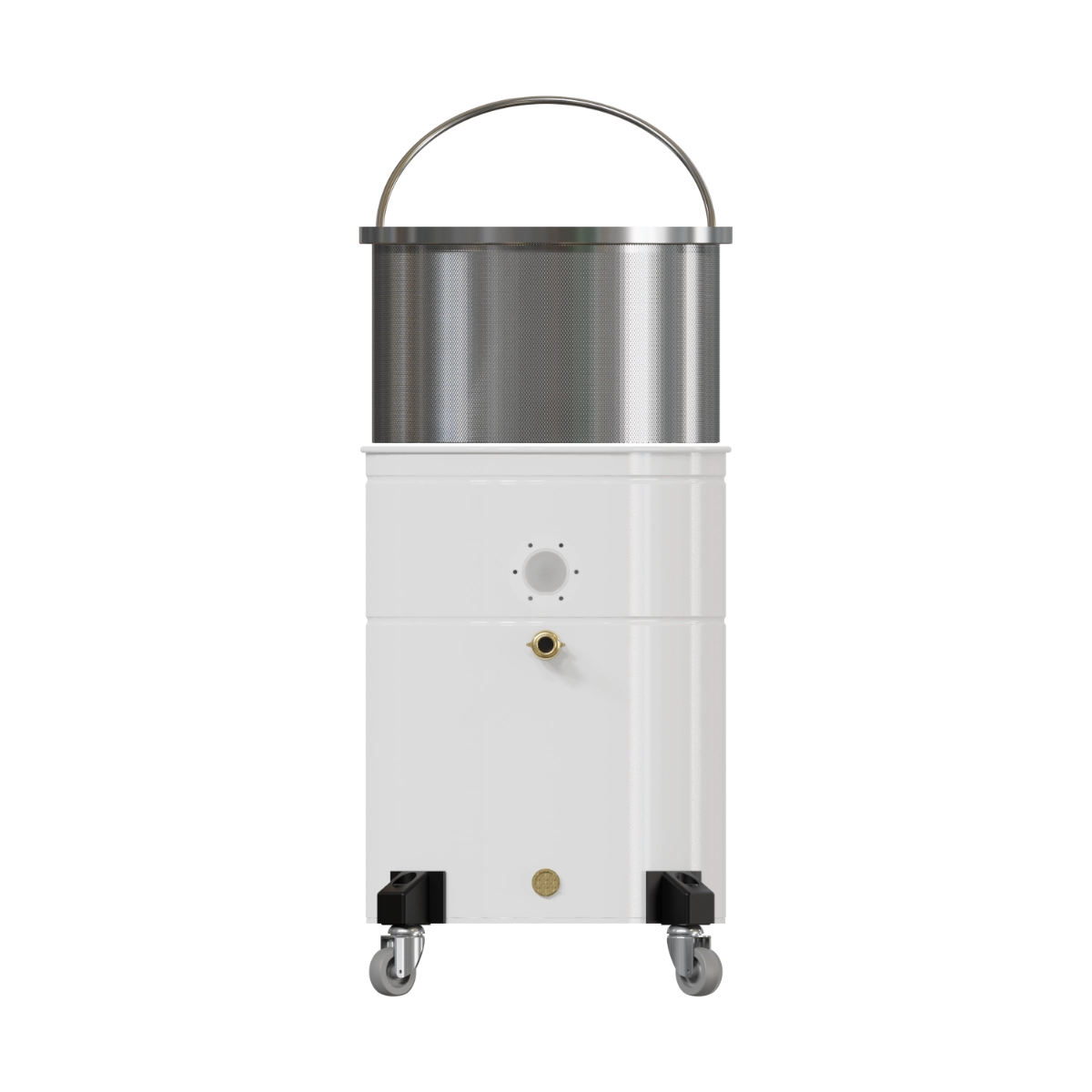

Chip Separator Basket

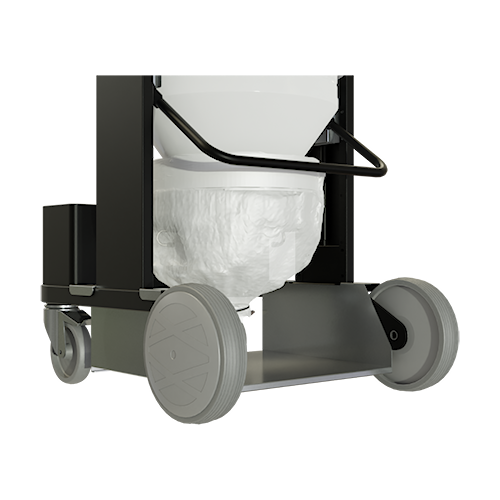

Longopac Continous Bag Unloading System

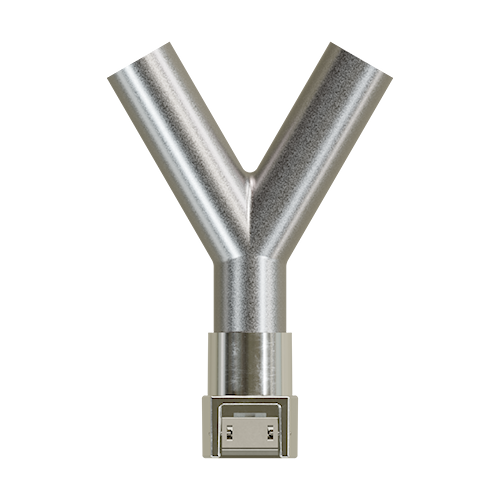

Y-Shaped Inlet Branch For 2 Flexible Hoses

Specifications

Model: ARIETE 561 ATEX Cod. AMI561TAX
Centralized model: Cod. AMI561TAXC
Motor type: Blower
Power supply: 5.2 kW
Voltage: 400 V
Frequency: 50 Hz
Amperage: 10.4 A
Air flow: 520 m³/h
Depression: 250 mBar
Max depression: 320 mBar
Inlet diameter: Ø 60 / 50 mm
Input type: Tangential
Filter chamber diameter: Ø 460 mm
Dimensions: 1100mm x 600mm x 1680mm
Weight: 163 kg
Filter type: 3 × cartridges
Primary filter surface: 30,000 cm²
Standard filter media: HEPA conductive + PTFE
Filter cleaning: Automatic compressed air
Collection container (solids and liquids): 100 L
Emptying of liquids: Manual
Longopac continuous bag unloading system: Optional Cod. AMIA102
HIP collection basket & oily liquid separator: Optional Cod. AMIA401
Y-shaped inlet branch for 2 flexible hoses: Optional Cod. AMIA312
Vacuuming kit (optional): Conductive antistatic for ATEX flexible hose pro kit (EX) – 5 m Ø 40 (Cod. AMIKX405)
Vacuuming kit (optional): Conductive antistatic for ATEX flexible hose pro kit (EX) – 10 m Ø 40 (Cod. AMIKX410)
Vacuuming kit (optional): Oil & chips hose pro kit – 5 m Ø 40 (Cod. AMIKOT405)
