The right modular choice of central power unit for buildings
Classic Dust Separators
The separators of the tertiary modular line are available in two versions, with and without self-cleaning, and complete the structure of the Central power unit. They are sized to fulfill the needs for dust collection from 4 to 6 contemporary operators (standard cleaning hose Ø32);
The versions with the filter self-cleaning device guarantee maximum performance with minimal maintenance; they also allow programmable cycles for self-cleaning of the filter using a timer, based on the saturation percentage of the filter itself.
All the separators of the modular line are equipped with a dust container opening/closure system, which thanks to two pedals located at the base of making emptying and maintenance operations easier.
It is a compressed air filter cleaning system through a programmable and automatic “Venturi” system for the filter cartridge, which considerably lowers the interventions of maintenance, keeping a high vacuum efficiency of the central vacuum unit for a long time.
It is the best system for cleaning environments: hygienic, fast, effective, safe and silent.
Tubò for the tertiary sector
With TUBÒ in the office, hotel, hospital, school, etc., you can breathe clean air
Why using tubò for tertiary sector
It is perfect for cleaning real estates, large buildings and environments such as hotels, offices, communities, healthcare facilities, gyms, etc.
Technology for maximum performance
The modular line combines the highest technical and functional advantages because it was built and calibrated to the needs of the building. The modular line reaches an optimal balance between technology, durability and reduced maintenance, thanks to its functional and ergonomic characteristics that simplify both installation and use. A synthesis that combines perfectly technical needs with simplicity of control through the display a on the body of the machine and the remote monitoring devices you can apply to it.
Low maintenance, simplified and safe
High-quality materials and durability
Soft start plug & play
The Soft Start starter, present even in the KOMPATTA KT, it allows longer life of the components electrical and electronic and one reduction of consumption. The electrical connection of the central unit is Plug & Play, very simple thanks to the supplied connectors and the control unit is programmed in autosetting on its first activation.
Always under control
The LED light signals, and the buttons integrated on the Panel, positioned on the support structure, allow to monitor its working status and carry out a series of tests and programming. The possibility to be integrated with other devices, upon request, allows for remote control also with connections to the most popular home automation systems.
Simple installation
The design of the modular line was made with a strong attention to specific needs of the buildings and the consequent modularity of the parts that are self-sustained, no one is required wall fixing. The dust separators have a reversible dust inlet and air vacuum on both sides; these features allow maximum flexibility and a simple installation, whatever the location of the vacuum module, with the possibility to connect the piping on both the right and left side.

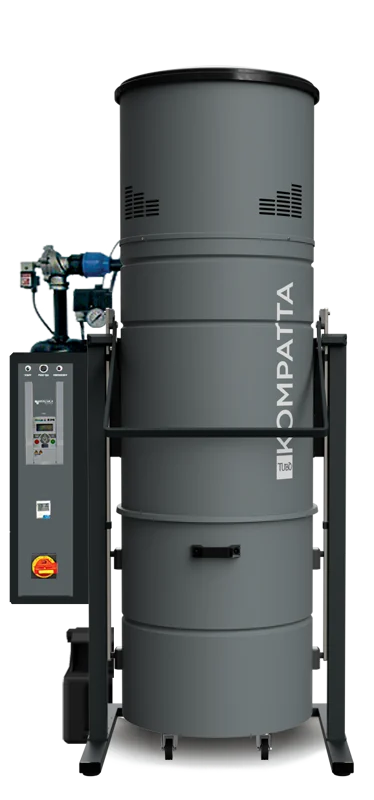

Kompatta Models
Code: CI258
Classic 150 Air Cleaning
With self-cleaning filter
Code: CI258.1
Classic 150 Air Cleaning Aux
With self-cleaning filter
Code: CI251
Classic 150
Manual filter cleaning
Code: CI242
Classic 100 Air Cleaning
With self-cleaning filter
Code: CI242.1
Classic 100 Air Cleaning Aux
With self-cleaning filter
Code: CI232
Classic 100
Manual filter cleaning
Consumable Spare Parts
Bags
Bags for separators LT100/A, LT100/B*
(20 pcs pack)
- Code: CI816
Bags for separators LT150/A e LT150/B*
(conf. pz 20)
- Code: CI820
*Contains protection kit with mask and gloves
Washable polyester filter cartridge
Washable polyester filter cartridge for separator LT100/A, LT100/B with self-cleaning, LT100/B without self-cleaning*
Dimensions: 61,3 cm H x Ø27 cm
- Code: CI870
Washable polyester filter cartridge for separator LT150/A with filter self-cleaning*
Dimensions: 61 cm H x Ø32,5 cm
- Code: CI864
Washable polyester filter cartridge for separator LT150/A*
Dimensions: 68,5 cm H x Ø35 cm
- Code: CI883
*Contains protection kit with mask and gloves
